OAuth app

Overview

The OAuth app is the recommended Share Access method that allows organizations to authorize partners to manage their brand and location data in Apple Business.

For a comparison between OAuth app and Delegation Share Access methods, see Share Access.

The OAuth app authorization workflow requires action by the partner and their client organization on both the partner website and Apple Business portal. See OAuth app Authorization Steps.

Terms

OAuth 2.0 is a protocol that "...enables a third-party application to obtain limited access to an HTTP service, either on behalf of a resource owner by orchestrating an approval interaction between the resource owner and the HTTP service, or by allowing the third-party application to obtain access on its own behalf."

OAuth app is a system that facilitates the authorization code flow ("three-legged OAuth"). This system supports the generation of an authorization code which is subsequently passed into a request for an access token using the authorization_code grant type. The term "OAuth app" is used in Apple Business to disambiguate it from a Service Account.

Service Account is a system that facilitates access to resources when signed requests for resources are received ("two-legged OAuth"). This system implements the client_credentials grant type.

OAuth app Authorization Steps

The OAuth app authorization workflow sets up trust between Apple, the partner, and an organization.

Figure: Organization and Partner OAuth workflow

Share Access Workflow with OAuth app

Partner must have production API access.

Figure: Share Access workflow for partners using OAuth app

An OAuth app on Apple Business requests authorization for partners to read or modify data in an organization's Apple Business account.

Step 1. Partner Adds OAuth Support

1. Partner Tests OAuth app.

2. Partner Platform Developer Requirements

3. Partner Registers OAuth app on Apple Business portal.

   1. Add OAuth app to Apple Business.
   2. Partner Builds Authorization Flow.
   3. Partner Invites Organization to Partner Platform.

Step 2. Organization Connects the Partner through OAuth app. Organization links their Apple Business account to their account on the partner platform.

1. Organization Initiates Connection. On the partner platform, the organization signs in and selects the Link Apple Business Account button.
2. Organization Allows Connection. On Apple Business, the organization selects Approved.
3. Organization Confirms the Connection.

Step 3. Partner Accesses Organization Data. Partner receives authorization to manage an organization's Apple Business account. Partners can then manage the organization's brands and locations.

1. Request Access Token.
2. Get Access Token Details.
3. Request Refresh Token.

Step 4. Partner Sends Organization Data to Production. Partner opens a session on their platform. Retrieves current tokens using Request Refresh Token. Manages organization data using Business API.

Step 1. Partner Adds OAuth Support

Partners build an infrastructure on their own platform following their security and infrastructure rules to support the OAuth app they register with Apple Business.

Partner Tests OAuth app

Partners can test OAuth app functionality during the onboarding process. To enable OAuth app testing during onboarding, contact Apple Business support and provide:

• Specify which environment(s) you need for testing (AIE and/or DQE)
• Your redirect_uri for the OAuth app (multiple URIs are possible; only https with valid signature is allowed)

Apple Business will provide test organizations for OAuth app testing in both environments.

Important: Testing during onboarding is different from production activation. See Prerequisites for Share Access for production requirements.

Partner Platform Developer Requirements

The partner must provide their developers with access to Apple Business portal so they can test the organization created. The developers must:

• Be an Apple Business account Team Member before setting up the OAuth app on Apple Business portal.
• Use credentials created for their Apple Business login to test the organization's OAuth app.

Contact Apple Business support for details on partner developer access.

Partner Registers their OAuth app

The following diagram shows the OAuth app authorization sequence and interaction between the organization, partner, and Apple Business, when an organization wants a partner to manage its current and future brands and locations through the partner's platform.

Figure: OAuth app sequence for partner authorization

Add OAuth app to Apple Business

After the partner has completed testing and integrating OAuth app with their platform, they can deploy it to production. Only partners that have production API access to Apple Business and users with administrator role may add an OAuth app in production.

See the Apple Business User Guide > Add OAuth apps to Apple Business.

When creating OAuth app the partner provides the OAuth app name and the redirect_uri. This redirect_uri:

• MUST NOT include a fragment
• MUST NOT include a user information
• MUST NOT resolve to a localhost
• MUST be HTTPS with proper domain certification
• MUST be a complete redirect, not a pattern

OAuth app returns the client_id and client_secret when the OAuth app is created. Save the client_secret somewhere secure it is displayed only this once.

important

Securely store the OAuth app client_secret.

Partner Builds Authorization Flow

Setup Requirements

• Add an OAuth app on Apple Business
• Set up a web service to run the authorization code flow

Implementation

Add a Link Apple Business Account button on your platform that invokes the Business API > OAuth apps > Request Authorization Code call.

Partner Invites Organization to Partner Platform

Guide the organization to:

• Create an account on Apple Business
• Log into your partner domain

Contact Apple Business Brand Support for portal-related issues.

Step 2. Organization Connects the Partner through OAuth app

To start the OAuth app authorization code flow, the organization initiates and authorizes the partner connection to Apple Business.

Organization Initiates Connection

1. Partner directs the organization user to the partner authorization URL.

2. On the partner platform, the organization user signs in with administrator privileges. The user selects the Link Apple Business Account feature to link the partner account to their Apple Business account. This authorizes the partner account to access their Apple Business account.

The feature:

• Redirects the user to Apple Business for authorization.
• Invokes the Business API > OAuth apps > Request Authorization Code call.

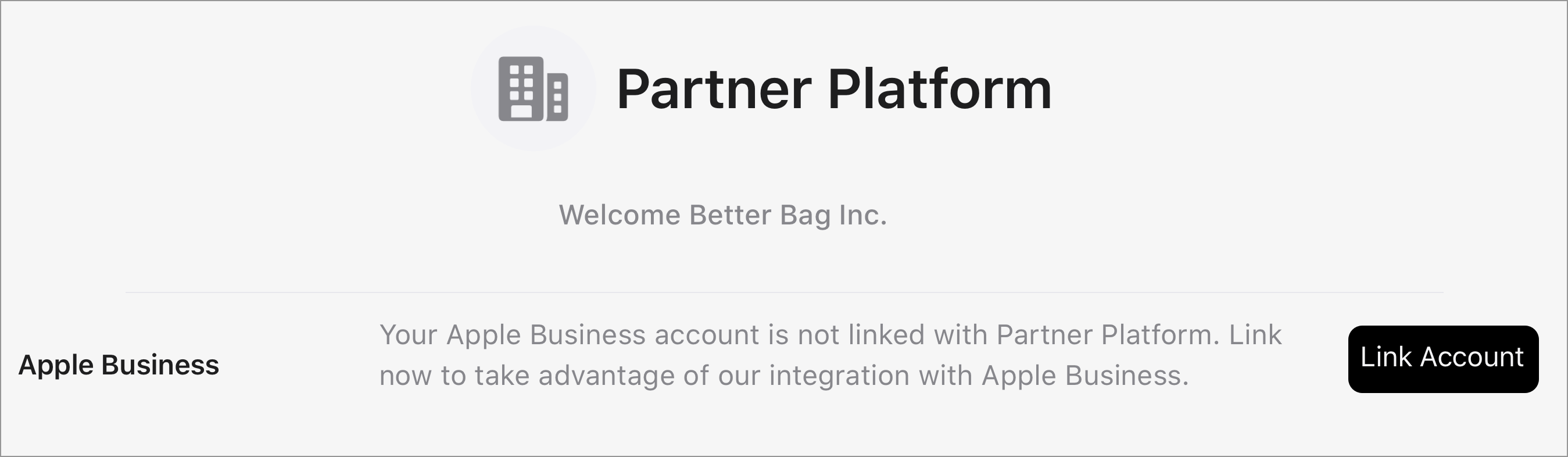

Figure: Organization Selects Link Account on Partner Platform

Organization Allows Connection

1. To proceed with the linking the partner and Apple Business accounts, the user signs into their Apple Business account.

• If a list of approved organizations is displayed, select the organization to link to the partner.
• If the user does not have an Apple Business organization, then they are provided a link to register with Apple Business before they can approve the OAuth app. See Apple Business User Guide > Sign up for Apple Business.

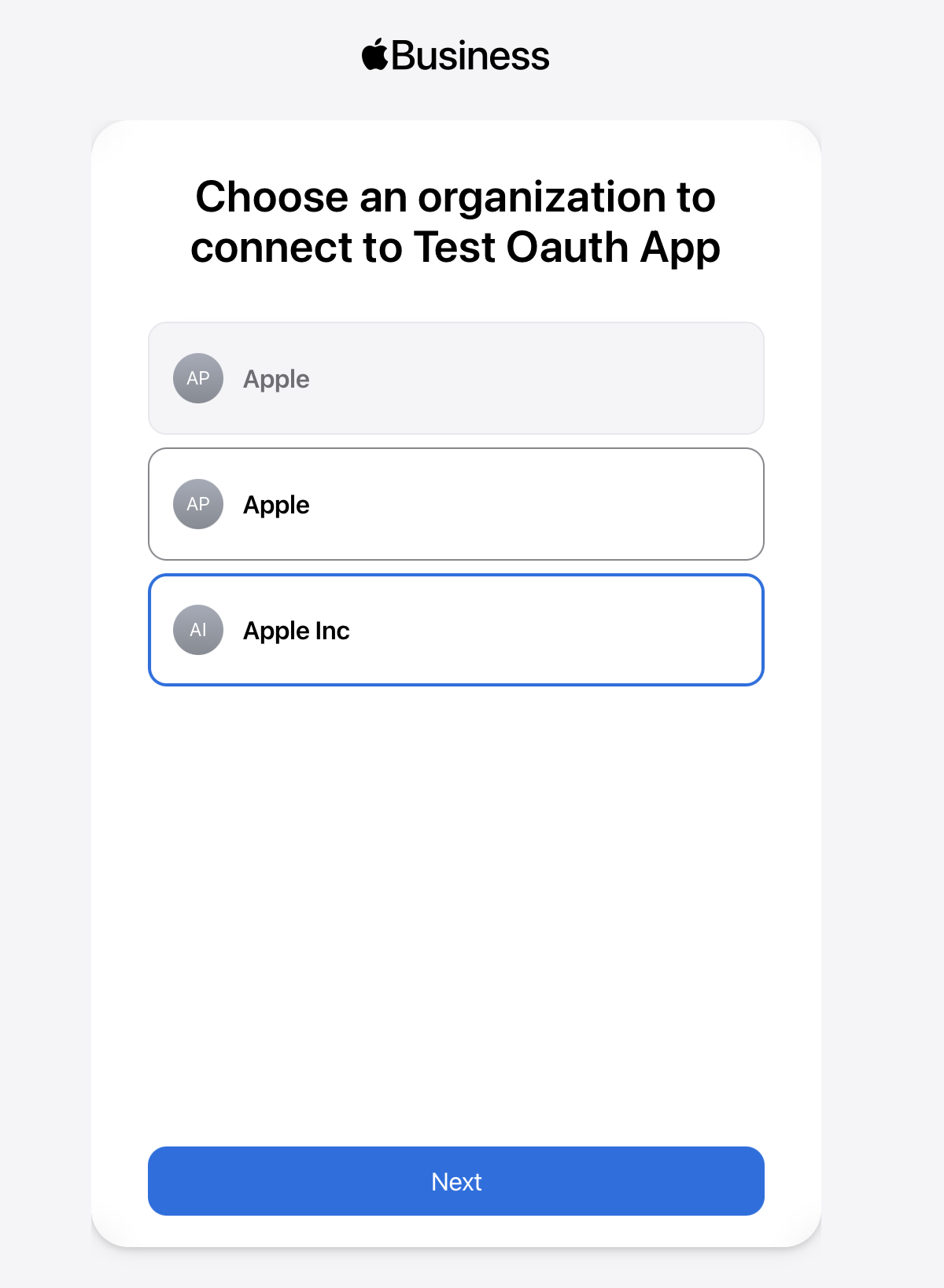

Figure: User Selects Organization on Apple Business portal

2. On Apple Business, the organization authorizes the partner's OAuth app connection. In the OAuth app authorization panel, click Allow.

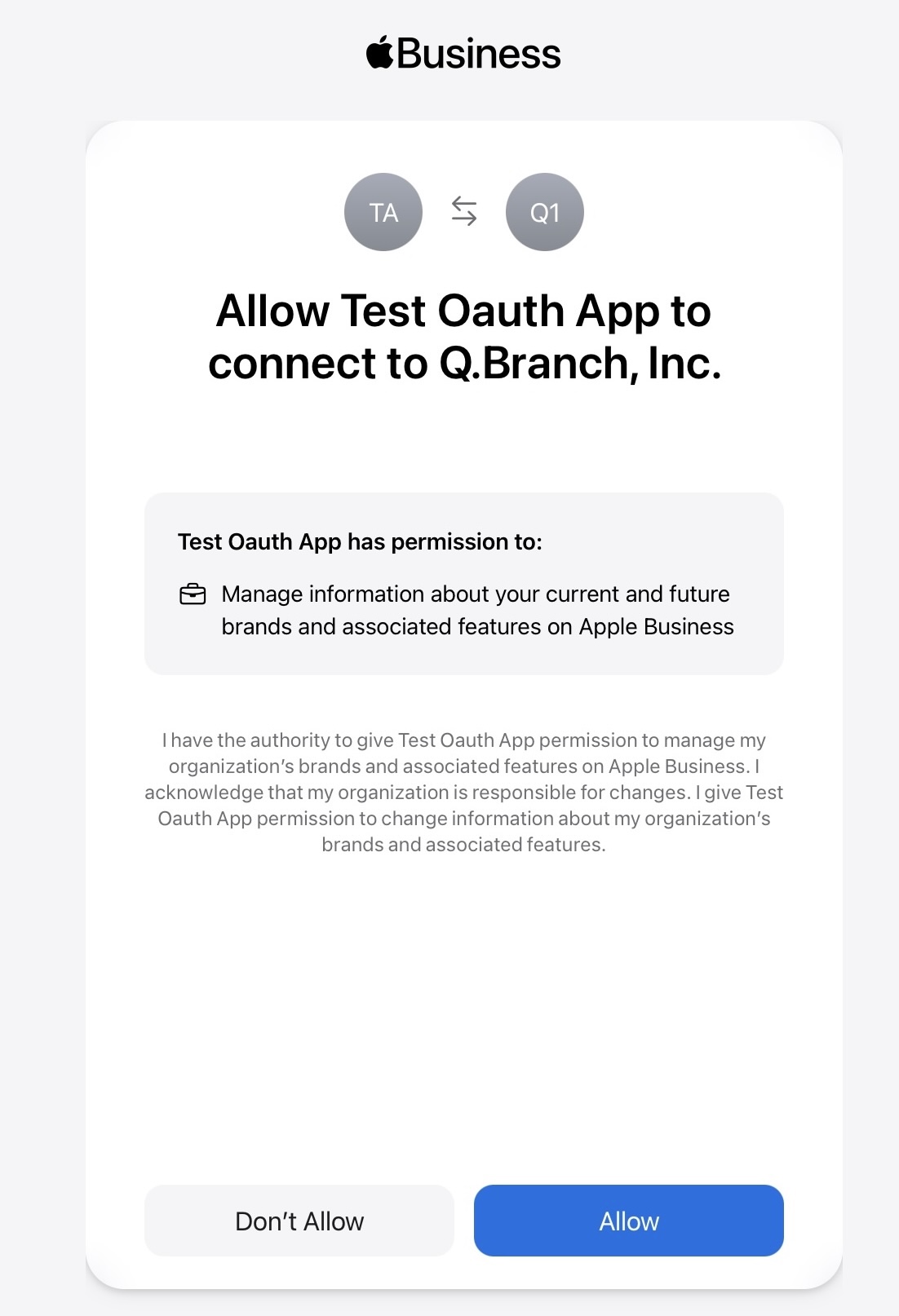

Figure: Organization Selects Allow on Apple Business portal

Apple Business:

• Redirects the organization to the redirect_uri specified when the OAuth app was created. This is the partner user interface.
• The organization redirect content includes a code and state.

The partner platform:

• Confirms the state received to prevent Cross-Site Request Forgery (CSRF) attacks.

  important

  Partner creates a unique state value for each organization request. This prevents Cross-Site Request Forgery (CSRF) attacks. DO NOT use a static value in production.

• If there is an error or if the organization cancels the flow, the redirect_uri receives an error on the URL parameter.

See Business API > OAuth apps > Errors for list of possible error codes.

Organization Confirms the Connection

After redirect to the redirect_uri, verify the connection:

1. Confirm the state value matches the original request.
2. Extract the code parameter for the next step.
3. If an error occurs, check the error_description parameter. See Business API > OAuth apps > Errors.

important

All scopes are granted upon authorization. See Business API > OAuth apps > Scopes.

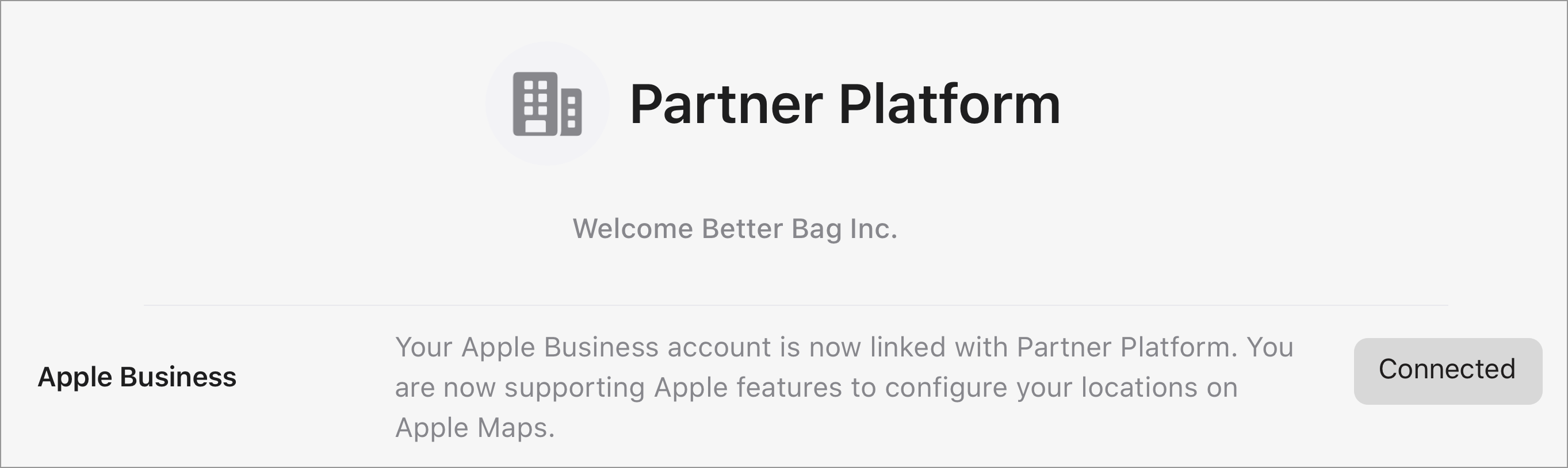

Figure: Organization Confirms on Partner Platform that the Partner is Connected

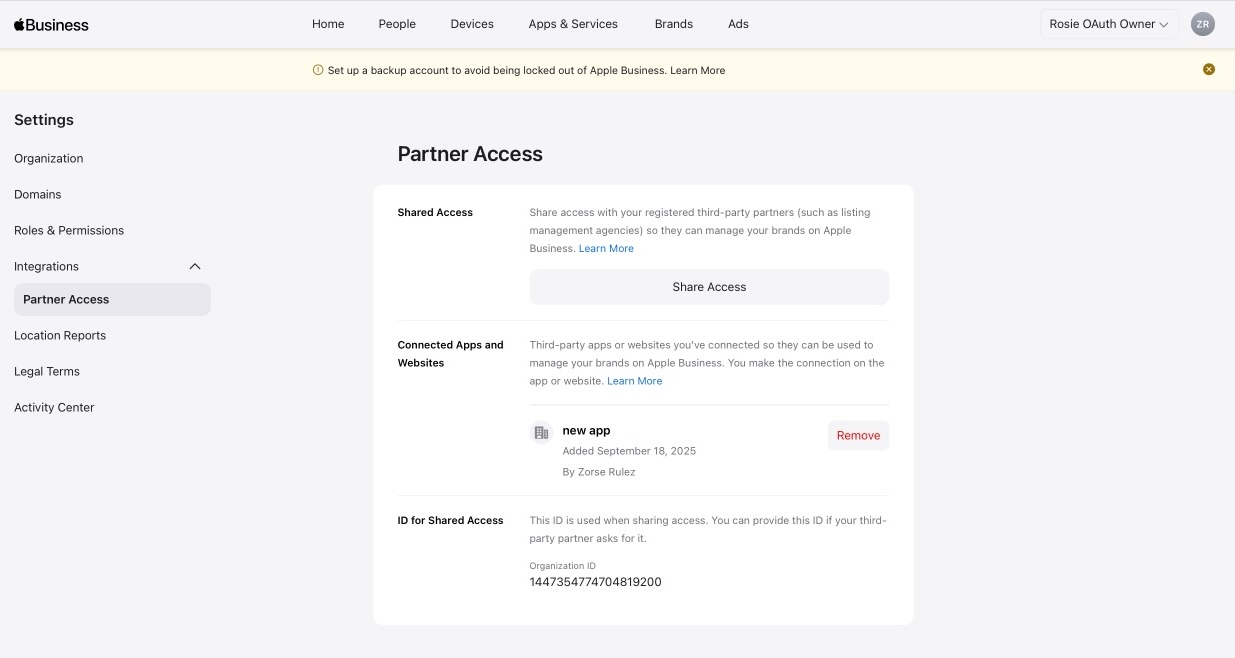

Figure: Organization Confirms on Apple Business that the Partner has Share Access through Partner Platform (OAuth app)

Step 3. Partner Accesses the Organization Data

On the partner platform, the partner uses Business API with all redirects and verifications between the partner website and Apple Business, to:

• Request Access Token
• Get Access Token Details
• Request Refresh Token

Request Access Token

The partner invokes a Request Token call to receive an access token.

1. Receive authorization code from Apple Business.

This code is returned by Apple Business in response to the Business API > OAuth apps > Request Authorization Code call that is issued when the organization selects the Link Apple Business Account button to start the link workflow. See Organization Connects the Partner through OAuth app.

2. Request an access_token within 5 minutes of receipt of the authorization code from Apple Business.

See Business API > OAuth apps > Request Token.

The code is good for one time use only and it expires after 5 minutes.

3. Receive the access_token and refresh_token.

The partner now has a 60 minute session with permission to manage the organization's data in Apple Business.

After the partner receives the access token:

• The Link Apple Business Account button on the partner's platform should change to Linked or Connected.
• The partner should inform the organization that they are connected to the partner platform and that the partner is connected to the organization's Apple Business data.
• Save the refresh_token. This allows the partner to request a new access_token when it expires.

Get Access Token Details

The partner retrieves details of the organization and contact person that granted you access. The partner will need this information for exercising the API.

See Business API > OAuth apps > Get Access Token Details.

Request Refresh Token

An access_token grants the partner access to the organization’s data for 60 minutes. Whenever the partner session times out, use the most recent refresh_token to request a new access_token.

To request a refresh_token, see Business API > OAuth apps > Request Token (Refresh).

Token Management

Managing tokens correctly requires handling errors and changes.

Organization Re-Authorizes OAuth

Sometimes an organization might re-authorize the OAuth app. This generates a new access token and invalidates the previous access token.

Best practice:

• Partners always update their system to retrieve the latest access token.
• Partners disable the OAuth authorization link on their site after they have a valid access token. This prevents organizations from accidentally re-authorizing the partner's OAuth app.

Error Handling

If a partner Business API call using an access token, returns an error, take the action listed for the HTTP status codes.

400, 401	Error: invalid_grant	Action:

1. Use the Business API > OAuth apps > Get Access Token Details API to validate the access token (or refresh token).
2. If the access token shows invalid try to retrieve a new one with the refresh token.

If the refresh token is invalid this means the authorization has been revoked. Please contact the organization to re-authorize your OAuth app.

200	Error: null response	Action:

Apple Business support.

Step 4. Partner Sends Organization Data to Production

Send brand and location data using OAuth tokens from Request Access Token and Request Refresh Token. See Send Data with Share Access.

Workflow

1. Open a session to access the organization's Apple Business data.
2. Use Request Token (Refresh) to extend sessions as needed.
3. Manage organization data using the Business API.

For FAQs and best practices, see Share Access.
